Mould Design and Thermal Management for Molten Glass Pressing

Define the Mould Set and Machine Interfaces

Start by identifying which tool forms each product surface and how the complete set fits the intended press. A shallow dish, a ribbed lighting cover and a threaded article can require different opening and support arrangements.

WALTEC lists block, hinged and tulip mould systems for its pressing tables. These are equipment examples; the chosen arrangement still needs to suit the particular article and machine. WALTEC: Glass Production Lines

Document the assembled configuration

The assembly drawing should show a common axis or locating references, seating planes, orientation features and the approved combinations of inserts, rings and plungers. Identify the equipment mounting dimensions, available stroke, access for loading and take-out, and connections needed for cooling.

Give replaceable parts traceable identifiers and specify how their location will be checked after installation. Matched components should not be mixed simply because each passes its individual inspection. Keep identification away from glass-contact surfaces and retain the drawing revision with the assembled set.

Design the Forming Space and Release Sequence

Develop cavity and plunger surfaces from the finished-component requirements. Keep the nominal product geometry separate from the tool compensation, finishing stock and machine setup used to achieve it.

Check filling throughout the stroke

Review the changing forming gap as the plunger enters, including narrow sections, deep patterns, thin terminal edges and the transition from a thick rim to a thinner wall. A feature that exists in the final tool space may still receive glass late in the stroke.

Define how the final pressing position is established and checked. Relate that position to the intended wall distribution while allowing for the actual gob condition, tool movement and thermal response. A machine displacement reading can include compliance outside the forming surfaces; it is not, by itself, a wall-thickness measurement.

Cold dimensions also need to be assessed against tool expansion and the glass dimensions after annealing and any finishing. Retain compensation changes as controlled revisions, supported by measurements from identified trials.

Resolve withdrawal, parting and alignment together

Mark the forming and withdrawal directions on the drawing. Review draft, internal shoulders, threads and other undercuts against the proposed opening sequence. Specify the required relief or opening sections for the geometry; draft values need to be agreed for the actual glass, surface and release conditions.

Place parting interfaces with regard to optical areas, sealing faces, locating diameters and thread engagement. Define acceptable interface marks, steps or excess glass on the product drawing. Check closure support, plunger-to-cavity alignment and rotational orientation under representative operating conditions.

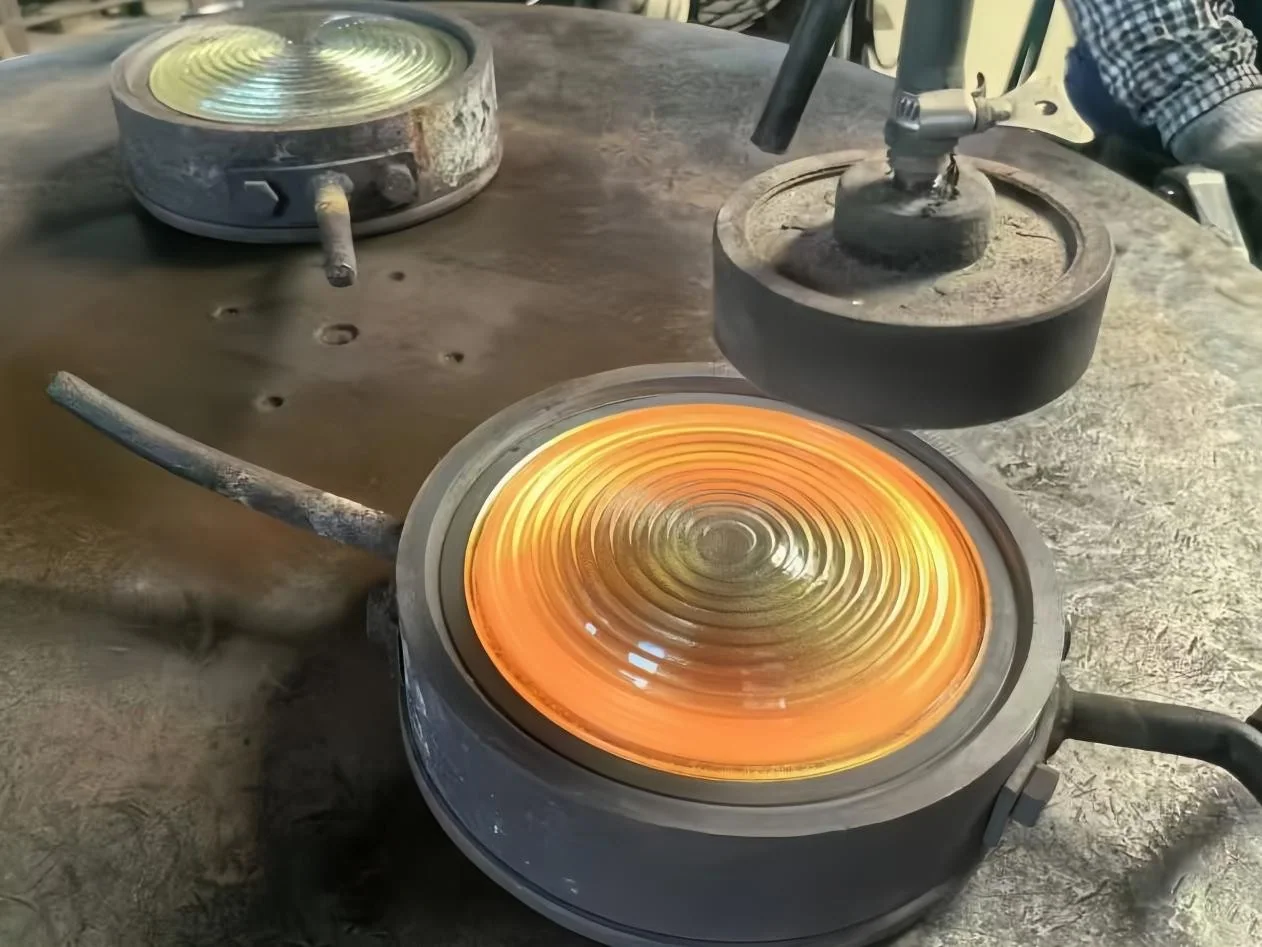

Distinguish guide clearance, forming gap and vent opening: they serve different functions. Confirm that the hot article remains supported while the plunger, rings and mould sections move, and that take-out does not load a vulnerable rim or patterned surface.

Select Tool Materials by Component

Select the material and treatment condition for each tool component, considering heat transfer, thermal expansion, strength at temperature, thermal fatigue, wear, oxidation and repairability. The cavity and plunger need not use the same alloy.

Gillinder describes ductile iron for most of its moulds, with A-2 tool steel or stainless steel for some requirements. This is a manufacturer-specific example, not a universal material specification. Gillinder: Mould Making for Pressed Glass

Treat substitutions as changes to the process

An alloy substitution can change the tool's temperature distribution and dimensional response even when the cold geometry is unchanged. Review fit, cooling, release and component quality before approving it. Record the actual grade and treatment condition rather than descriptions such as “heat-resistant metal”.

Provide a Complete Air Escape Path

Venting should follow the expected sequence of glass contact and filling. Identify where air could become enclosed as the gob spreads, especially around deep patterns, perimeter regions and surfaces contacted early in the stroke.

Trace the path to its outlet

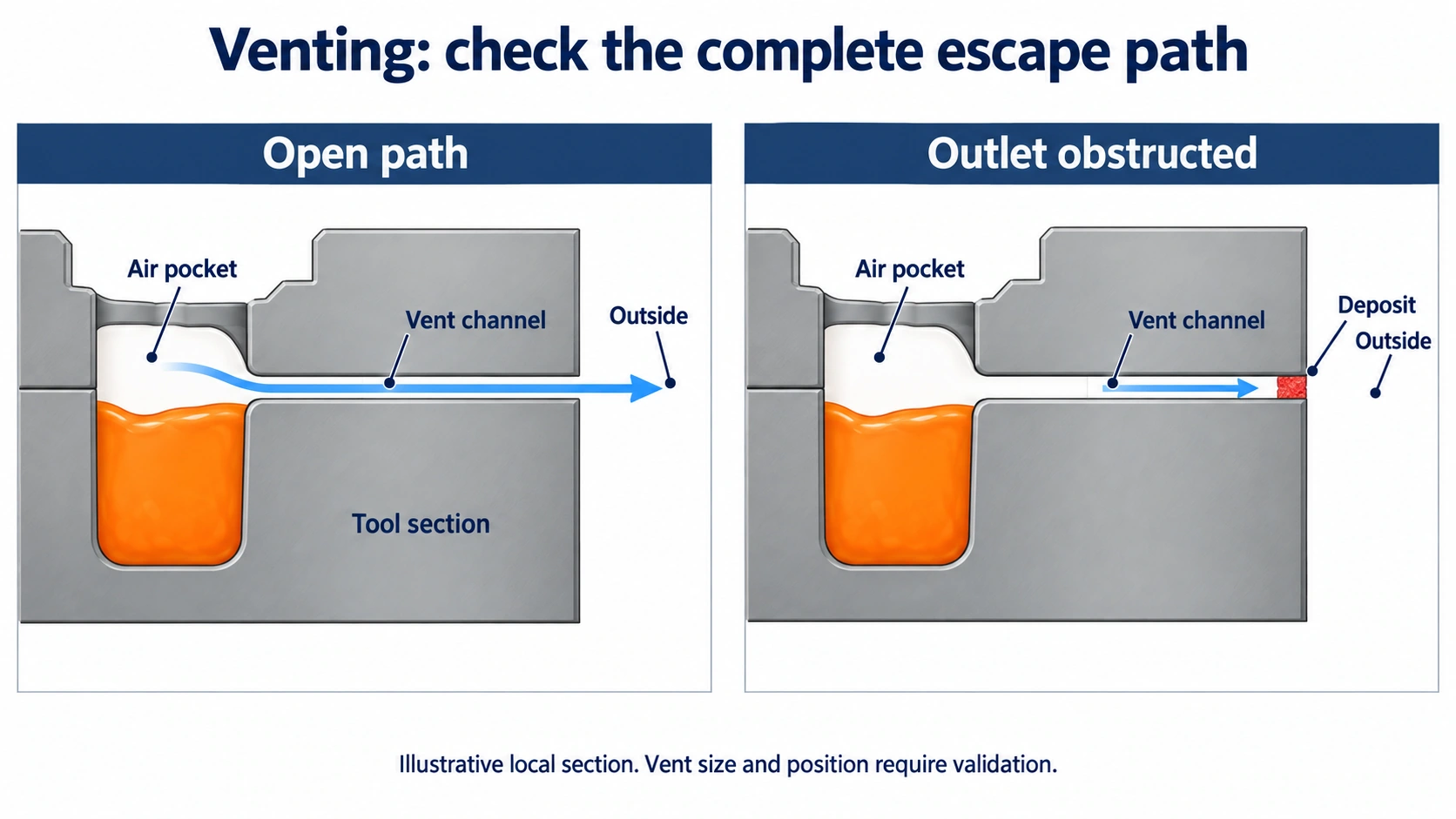

For each intended vent, follow the route from the potential air pocket through the groove, hole or controlled interface to a usable outlet. Review the assembled tool: a passage visible in an individual insert may be covered by its holder, mating component or deposits.

The drawing should identify the inlet, passage, outlet and the features that control their assembled relationship. Provide access for inspection and cleaning, including after the tool has been refitted.

Balance air escape with mark control

Define vent locations relative to optical, sealing and appearance zones. Vent geometry must allow the intended air escape while limiting glass intrusion and unacceptable marks. Its dimensions require development for the particular geometry, glass condition and cycle.

Include vents in the inspection after polishing, repair or component replacement. When investigating local filling defects, compare the vent condition with gob placement and filling sequence. Distinguish a cavity air issue from bubbles already present in the incoming glass.

Control Forming Surfaces and Release Treatments

Specify surface condition by function. A forming surface may need controls for overall profile, waviness, roughness, intentional texture and isolated defects; a polished appearance does not establish all of these characteristics.

Protect geometry during finishing

For a ribbed or prismatic cover, identify pitch, depth, flank geometry and edge radii that finishing must preserve. Record permitted material removal and inspect the affected features after resurfacing. Apply the same discipline to narrow seating faces and parting edges.

Where roughness is specified, identify the parameter, measurement area or profile length, and relevant filtering. Separately identify surfaces that form the delivered component and surfaces that generate stock for later grinding or polishing.

Specify the treatment and its application

Machine lubrication, gob-delivery treatments and glass-contact release products have different duties. FUCHS lists these as distinct product categories; suitability must be established for the actual application. FUCHS: VITROLIS Glass Industry Products

For an applied mould treatment, record product identity, treated surfaces, preparation, coverage, conditioning and reapplication criteria. Evaluate release together with deposits, transferred marks and subsequent cleaning or coating requirements.

For a durable coating, define coverage, relevant thickness and adhesion requirements, and acceptable service condition. Repair or recoating needs checks for changes to form and fit. Neither a release product nor a coating should be expected to resolve an incompatible withdrawal path or misaligned assembly.

Establish the Thermal Cycle and Start-Up Conditions

Preheating establishes a starting condition. Production then creates repeated heat input from glass contact and heat removal through the tool, cooling system and surroundings. A repeatable thermal cycle can be the appropriate target; a constant temperature is not required at every location.

Connect thermal checks to cycle events

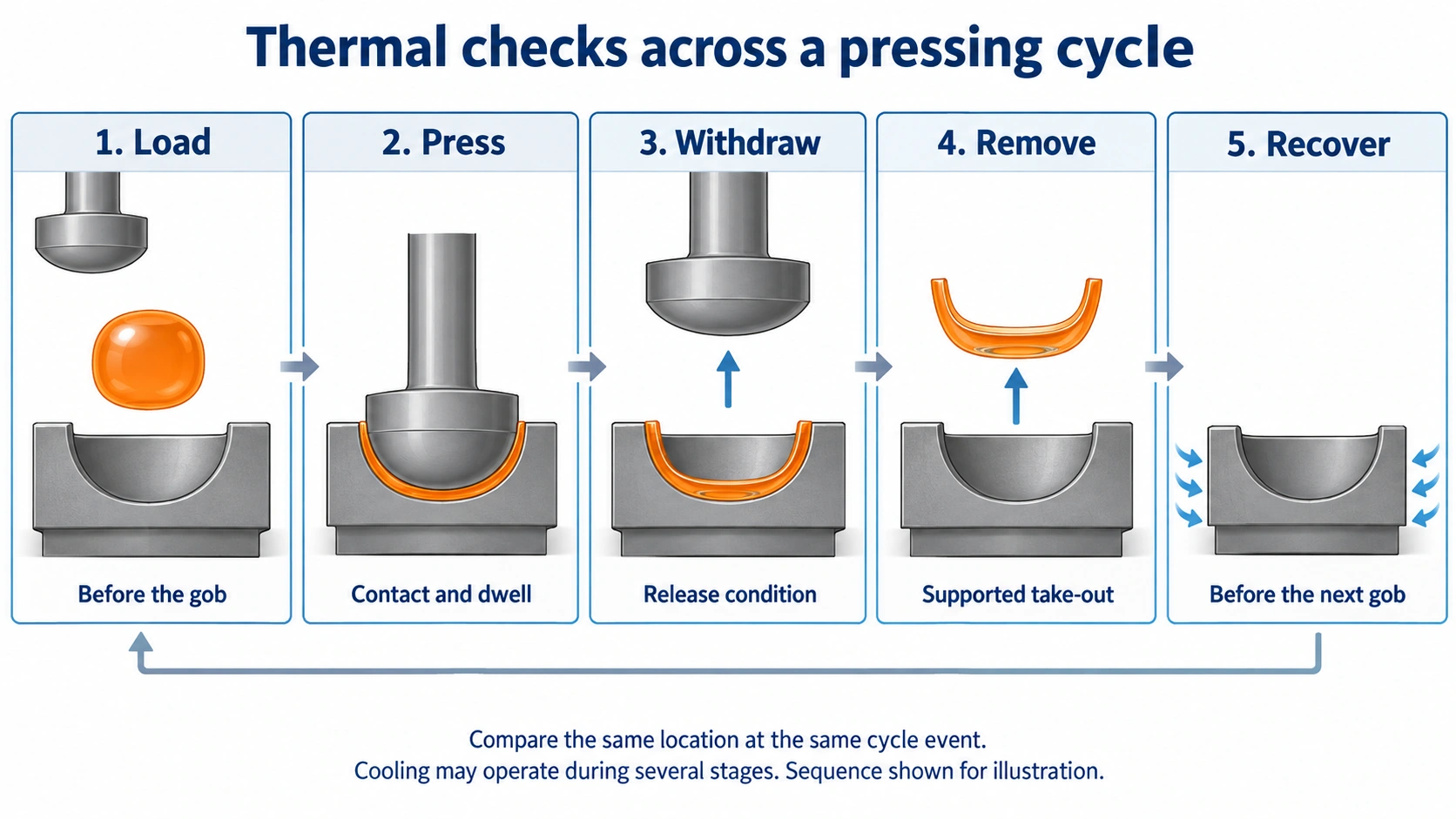

Define the events used to compare conditions: before loading, during pressing contact, at plunger withdrawal, during article removal and before the next gob. Record contact time, relevant machine timing and interruptions alongside temperatures. Cooling may operate during several of these stages.

Assess changes to contact time, withdrawal timing and cooling together with filling, shape retention and release. The mould, plunger and ring have different contact histories; one temperature reading cannot describe the complete set.

Release production using defined evidence

Before start-up, confirm the installed tool identities, cleanliness, surface treatment, movement and cooling connections. Use the approved equipment and tool-heating procedure, with temperature checks at defined locations. Heating time is useful only when its relationship to the required tool condition has been established.

Keep start-up components identifiable while the tool approaches its production condition. Define the temperature observations and component results needed to release production. Restart criteria should address interruptions, extended idle periods, tool changes and treatment renewal rather than assuming every restart resembles an uninterrupted cycle.

Design Cooling and Temperature Measurement Together

Plan cooling around the heat entering each region, the conduction path through the tool and the support needed behind the forming surface. A thick rim, a thin optical section and a massive insert can have different requirements.

Verify delivery to the intended region

Identify cooling locations or passages, the distance from the forming surface, flow distribution, outlets and access for cleaning. Consider mould, plunger and ring circuits separately where the equipment permits independent control. The cooling medium must suit the designed equipment; liquid-cooled systems require their specified containment and integrity checks.

A supply setting does not demonstrate the flow reaching every passage. Use appropriate flow, pressure, temperature or system checks to identify restrictions and imbalances. Recheck the response after cleaning, repair or replacement.

Removing heat can assist shape retention while making late-filling regions harder to form. Evaluate cooling changes against the complete component, including pattern replication, release and dimensions at the specified delivery state.

Make readings comparable

An embedded sensor reports its local temperature with a response influenced by its installation. An infrared reading depends on the target surface, viewing conditions and reflected radiation. Keep inferred surface temperatures and model outputs identifiable as such.

Compare the same location at the same cycle event before interpreting a trend. Different regions need not share a temperature; their qualified behaviour must support acceptable parts.

Maintain Tool Condition and Control Repairs

Use the function of each feature to set inspection priorities. Worn prism edges, a damaged seating face or a restricted cooling passage can matter before a general cavity dimension moves outside its limit.

Connect observations with checks

The following observations guide an investigation; none identifies a unique cause.

Record cavity or tool identity with defect locations and measurement trends. This helps distinguish a local tool condition from a change affecting all cavities.

Define the return-to-service decision

Separate cleaning from operations that remove or rebuild material. Protect patterned surfaces, parting edges, vents, coatings and locating references. After polishing, insert replacement, rebuilding or recoating, inspect the affected geometry and interfaces; use a production trial where their function or thermal response may have changed.

Track wear, pitting, adhesion, thermal-fatigue cracks, oxidation and circuit condition. Use cycle counts and service dates to organise inspection, with acceptance based on function and condition. Replace or refer the tool for engineering disposition when damage exceeds the repair allowance, recurring defects remain after repair, or structural or cooling integrity cannot be restored. Preserve identification and protected surfaces during storage.

Worked Example: A Lighting Cover with a Heavy Rim

Consider a directly pressed lighting cover with a thin ribbed transmitting region and a thicker mounting rim. The following is an illustrative review plan. Dimensions, acceptance limits and production settings must come from the project specification and trials.

Link product requirements to tooling and checks

Use trials to resolve the uncertainty

Establish a baseline with identified glass, gob condition and tool configuration. Record temperatures at defined locations in the rim and transmitting regions at consistent cycle events. Different local thermal conditions may be appropriate; evaluate their effect on the whole component.

If the transmitting region fills poorly, investigate its filling sequence, air escape and local thermal condition alongside the incoming gob. If removal distorts the rim, examine release timing and support as well as cooling. Record deliberate changes and compare their effect on the entire part.

Approve the seating dimensions and optical features at the specified state after annealing and any required finishing. Retain representative accepted samples and the tool, treatment and cycle records that produced them.

Qualify the Tool and Agree the Delivery Scope

Tool inspection establishes the mould set's measured condition. Production trials establish how that set performs with the selected glass, feeding arrangement and thermal cycle. Approval should connect these two kinds of evidence.

Define the acceptance package

Before trials, agree the acceptance basis and name the reviewer for each function below. The project documents should establish the allocation of responsibilities and approval authority.

Record the reviewer, date, decision and any open conditions. Where customer approval is required, retain it alongside the supplier's internal release record.

Specify whether acceptance applies after pressing and annealing, after finishing or after coating. Include start-up and representative continued-production results where needed to establish repeatability. Link each sample to its tool and trial conditions.

Agree ownership, storage, maintenance responsibility, replacement arrangements and approval of design changes. For a supplied existing mould, review its documentation, condition and machine compatibility before committing to reuse. Tooling cost and lead time should reflect the required components, development trials, inspection and maintenance scope.

Request a mould and tooling review

Send BO-Glass the component drawing, glass specification, critical optical and assembly requirements, expected quantities and required delivery state. For an existing tool, include available drawings, photographs, maintenance records and examples of the product issue.

These inputs support a review of the mould arrangement, thermal management, validation work and quotation scope for the pressed glass component.
